Description

Resistance range: 60mΩ/10A~6kΩ/100uA; Resolution: 10uΩ;
Specifications of UT620A Digital Micro Ohm Meter

Specifications Range UT620A
Resolution 10uΩ
Resistance (Ω) 60mΩ/10A
120mΩ/5A ±(0.25%+25)
600mΩ/1A ±(0.25%+25)
6Ω/100mA ±(0.25%+25)
60Ω/10mA ±(0.25%+25)
600Ω/1mA ±(0.25%+25)
6kΩ/100uA ±(0.75%+30)
Features
Display count 60000
Four-wire measurement √
Wire length measurement √
High/low limit alarm √
Data storage 1000
USB data transmission √
Manual range √
Backlight √
Relative value √
Low battery indication √
Auto power off
General Characteristics
Power Li-ion battery 7.4V 4000mAh, rechargeable
Display 116mm x 87.5mm
Product color Red and grey
Product net weight 1.5kg
Product size 268mm x 168mm x 60mm

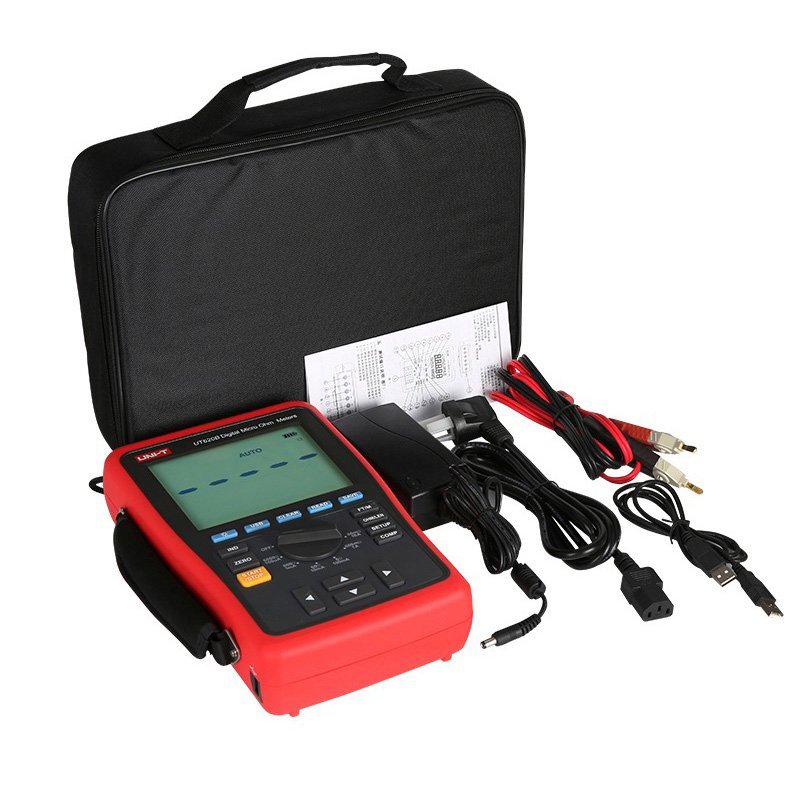

Standard accessories Test leads with Kelvin clips (red & black), power cord, power adaptor, USB interface cable, PC software CD
Standard individual packing Gift box, carrying bag, English manual
Standard quantity per carton 1pcs
Standard carton measurement 370mm x 90mm x 290mm
Standard carton gross weight 3kg
Optional accessories Four-wire test probes (red & black) x 1
