Description

Optical Multimeter : Power Meter & VFL; Measurement Range -70~+10 dBm; VFL: 10mW, Optical fiber length range: 8~10km;

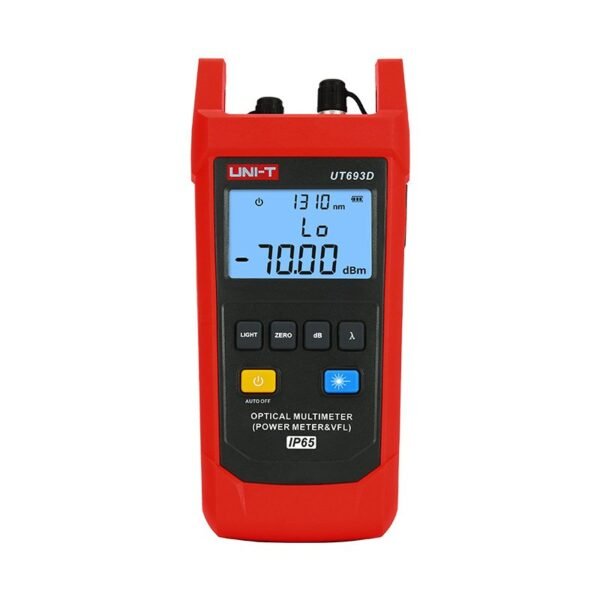

Specifications of UT693D Optical Multimeter (Power Meter & VFL)

Specifications Description UT693D
Optical power meter Wavelength range 800nm~1700nm √
Calibrated wavelength 850nm, 980nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm, 1650nm
Measurement range UT692D/UT693D: -70~10dBm, UT692G: -50~26dBm
Uncertainty ±5%
Display resolution Linear: 0.1%, logarithmic: 0.01dBm
Connector FC/SC/ST
Detector type InGaAs
Visual faultlocator Wavelength 650nm±10nm √
Power 10mW (measurable optical fiber length: approximately 8~10km)
Mode Continuous/Pulse
Connector FC/SC/ST
Features
Low battery indication √
Auto power off √
IP rating IP65
Drop test 2m
General Characteristics
Power 1.5V battery (LR6) x 3
Display 63mm x 40mm
Product color Red and grey
Product net weight 300g
Product size 189mm x 87mm x 45mm
Standard accessories Batteries, carrying bag
Standard individual packing Gift box, English manual
Standard quantity per carton 10pcs
Standard carton measurement 295mm x 250mm x 210mm
Standard carton gross weight 5.66kg
