Description

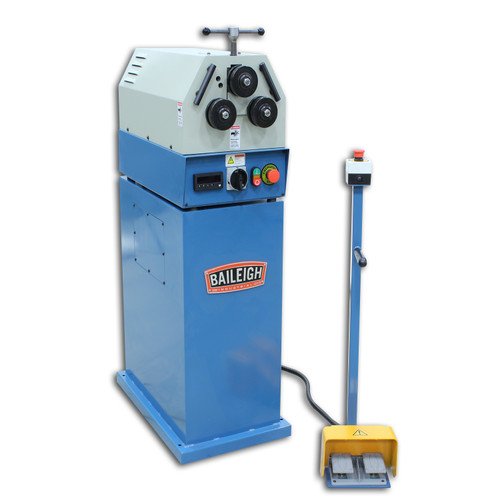

Baileigh 110V Ring and Angle Roll Bender with 2 Driven Rolls Manual Top Roll (1006849) is the perfect solution for shaping small diameter materials and rolling coils with ease. This compact and efficient machine is ideal for metalworking shops of all sizes.

The 1006849 manual top roll bender operates on 110-volt power, handling a maximum capacity of 1″ round tube. Its adjustable lateral guides allow for versatile bending to just about any coil width. Rolling operations are controlled via foot pedals for forward and reverse roll direction, with an integrated emergency stop for safety.

• Specifications and Dimensions
  • Length: 60 in.
  • Width: 44 in.
  • Height: 59 in.
  • Net Weight: 420 lbs
  • Manufacturer: JPW Industries
  • Part Number: 1006849
  • Power Source: AC/DC
  • Driven Rolls: 2
  • Roll Adjustment: Manual



• Key Features and Benefits
  • Compact design for tight roll formation
  • Adjustable lateral guides for versatile coil widths
  • Convenient foot pedal controls for forward and reverse
  • Digital display for top roll position accuracy
  • Emergency stop for enhanced safety
  • Rugged steel frame for durability
  • Portable machine head for easy storage and transport
  • 1-year parts warranty
  • Lifetime technical support
