Description

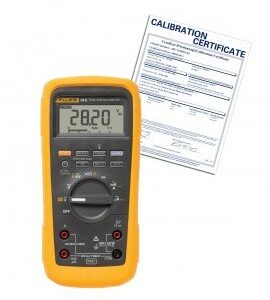

Fluke 28-II Offers
Features:
Measure up to 1000 V ac and dc
Measure up to 10 A (20 A for 30 seconds)10,000 μF capacitance range
Frequency to 200 kHz
Extended ac voltage bandwidth – 40 Hz to 30 kHz
Resistance, continuity and diode test
Min/Max and average recording to capture variations automatically
Peak min-max
Unique function for accurate voltage and frequency measurements on adjustable speed motor drives and other electrically noisy equipment
IP 67 waterproof & dustproof protection, completely sealed for use in harsh environments
Designed to withstand 3 meter drop (with holster)
True-rms ac voltage and current for accurate measurements on non-linear loads
Hi resolution 20,000 count display mode
Backlit keypad buttons allow for easy visibility in lowlit areas
Large display digits and 2 level bright white backlight for increased visibility
Reversible holster for added protection when not in use
Withstands hazardous 8,000 volt spikes caused by load switching and faults on industrial circuits and complies with second edition IEC and ANSI electrical safety standards
Long battery life (800 hours)
Relative mode to remove test lead resistance from low ohms measurements
Auto and manual ranging for maximum flexibility
Optional magnetic hanger for easy setup and viewing while freeing your hands for other tasks
MSHA approval (pending)Fluke 28-II Offers
Features:
Measure up to 1000 V ac and dc
Measure up to 10 A (20 A for 30 seconds)10,000 μF capacitance range
Frequency to 200 kHz
Extended ac voltage bandwidth – 40 Hz to 30 kHz
Resistance, continuity and diode test
Min/Max and average recording to capture variations automatically
Peak min-max
Unique function for accurate voltage and frequency measurements on adjustable speed motor drives and other electrically noisy equipment
IP 67 waterproof & dustproof protection, completely sealed for use in harsh environments
Designed to withstand 3 meter drop (with holster)
True-rms ac voltage and current for accurate measurements on non-linear loads
Hi resolution 20,000 count display mode
Backlit keypad buttons allow for easy visibility in lowlit areas
Large display digits and 2 level bright white backlight for increased visibility
Reversible holster for added protection when not in use
Withstands hazardous 8,000 volt spikes caused by load switching and faults on industrial circuits and complies with second edition IEC and ANSI electrical safety standards
Long battery life (800 hours)
Relative mode to remove test lead resistance from low ohms measurements
Auto and manual ranging for maximum flexibility
Optional magnetic hanger for easy setup and viewing while freeing your hands for other tasks
MSHA approval (pending)
Fluke 28-II Specifications
Voltage Range
0.1mV to 1000V AC/DC
Voltage Accuracy
AC: ±0.7% rdg. +4 dgt.
DC: ±0.05% rdg. +1 dgt.
Current Range
0.1µA to 10A AC/DC
Current Accuracy
AC: ±1.0% rdg. +2 dgt.
DC: ±0.2% rdg. +4 dgt.
Resistance Range
0.1Ω to 50MΩ
Capacitance Range
1nF to 9999ΩF
Frequency Range
0.5Hz to 199.99kHz
Temperature Range
-200 to 1090°C
Click here for complete specifications on the Fluke 28-II
What’s included with the Fluke 28-II
28-II Industrial Multimeter
Holster
Test leads
Alligator clips
80BK-A Temperature probe
Manual
CD-ROM
3 x AA batteries (installed)
