Description

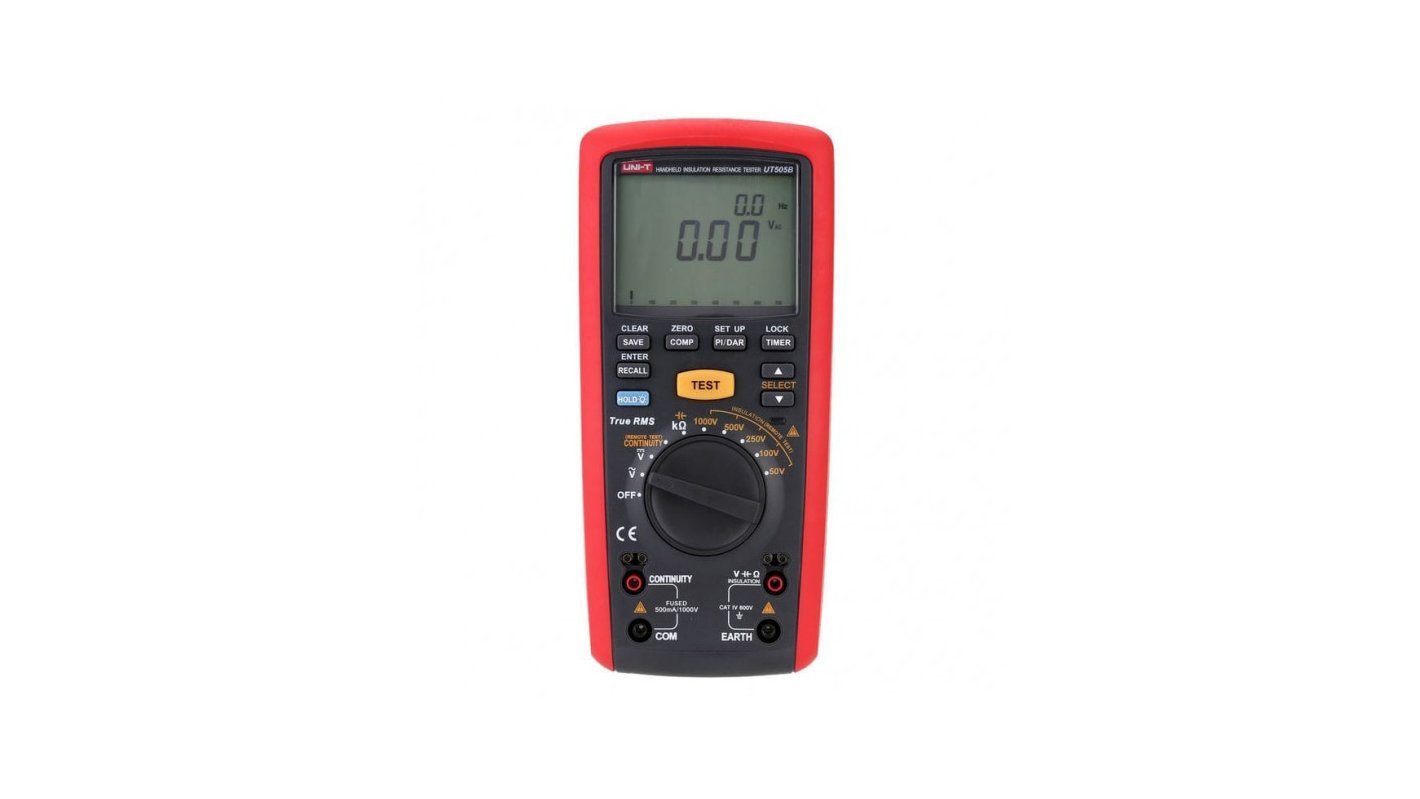

Insulation resistance : 1000V/20GΩ; Load current: 1mA; Short circuit current: <2mA; DC voltage : 600V; AC voltage : 600V ; General resistance : 10MΩ; DC voltage : 600V; AC voltage: 600V; Frequency : 45~1kH; Capacitance : 100pF~500μF; Specifications of UT505 Series Handheld Insulation Resistance TestersSpecifications Range UT505A UT505B Insulation resistance (Ω) 50V 50V/100V/250V/500V/1000V 0%~10% 0%~20% 0.01MΩ~50MΩ ±(3%+5) ±(3%+3) 50MΩ~1GΩ ±(3%+3) 100V 1GΩ~10GΩ ±(10%+3) 0.01MΩ~100MΩ ±(3%+5) ±(3%+3) 100MΩ~1GΩ ±(3%+3) 250V 1GΩ~20GΩ ±(10%+3) 0.01MΩ~200MΩ ±(1.5%+5) ±(1.5%+5) 200MΩ~1GΩ ±(1.5%+5) 500V 1GΩ~50GΩ ±(10%+3) 0.01MΩ~500MΩ ±(1.5%+5) ±(1.5%+5) 500MΩ~1GΩ ±(1.5%+5) 1000V 1GΩ~100GΩ ±(10%+3) 0.1MΩ~2000MΩ ±(1.5%+5) ±(1.5%+5) 2GΩ~9.9GΩ ±(10%+3) ±(5%+3) 10GΩ~20GΩ ±(20%+10) ±(7%+3) 20GΩ~200GΩ ±(20%+3) Load current 50V (R=50kΩ) 1mA 0%~10% 0%~10% 100V (R=100kΩ) 1mA 0%~10% 0%~10% 250V (R=250kΩ) 1mA 0%~10% 0%~10% 500V (R=500kΩ) 1mA 0%~10% 0%~10% 1000V (R=1MΩ) 1mA 0%~10% 0%~10% Short circuit current <2mA <2mA Leakage current (A) 10~2000μA ±(10%+3) Low resistance (Ω) 0.01Ω~20kΩ (about 5V/>200mA) ±(1.5%+3)
0.01Ω~100Ω (about 5V/>200mA/20mA optional) ±(1.5%+3)
General resistance (Ω) 0.01kΩ~10MΩ ±(3%+3)
DC voltage (V) 0V~600V ±(2%+3) ±(2%+3)
AC voltage (V) 0V~600V ±(2%+3) ±(1.5%+5)
Frequency (Hz) 45~1kHz ±(0.1%+3)
Capacitance (F) 100pF~500μF ±(5%+5)
Features
Display count 6000 6000
Auto range/True RMS √ √
Step voltage 10% steps at 50%~120% of range √ √
DAR 60s/15s and 60s/30s √ √
PI/Timing measurement √ √
Auto discharge √ √
Auto fuse check √
Analog bar graph √ √
Continuity buzzer √ √
Comparison measurement √ √
Low battery indication √ √
General Characteristics
Power 1.5V battery (LR6) x 6
Display 78mm x 59mm
Product color Red and grey
Product net weight 630g
Product size 103mm x 225mm x 59mm
Standard accessories Batteries, test leads, test probes, alligator clips, remote test lead (UT505B only)
Standard individual packing Carrying bag, gift box, English manual
Standard quantity per carton 20pcs
Standard carton measurement 515mm x 380mm x 385mm (0.075 CBM per standard carton)
Standard carton gross weight 20.8kg
