Description

DC voltage : 50mV/500mV/30V; Resistance : 500Ω/5000Ω; Thermocouples: R; S; K; E; J; T; N; B; L; U; RTDs: Pt100/Pt200/Pt500/Pt1000/Cu10/Cu50/Cu100/Pt100-392/Pt100-JIS/Ni120; Continuity test; DC voltage : 100mV/1000mV/10V; Resistance : 400Ω/4000Ω;

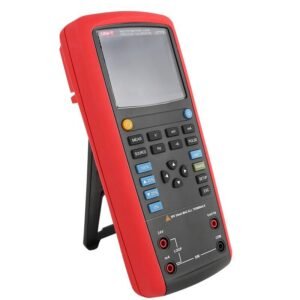

Specifications of UT714 Multifunction Temperature Process Calibrator

Specifications Range UT714
Measurement
DC voltage (V) 50mV/500mV/30V ±(0.02%+2)
Resistance (Ω) 500Ω/5000Ω ±(0.05%+10)
Thermocouples R,S,K,E,J,T,N,B,L,U
RTDs Pt100/Pt200/Pt500/Pt1000/Cu10/Cu50/Cu100/Pt100-392/Pt100-JIS/Ni120
Continuity test √
Source
DC voltage (V) 100mV/1000mV/10V ±(0.02%+10)
Resistance (Ω) 400Ω/4000Ω ±(0.05%+10)
Thermocouples R,S,K,E,J,T,N,B,L,U
RTDs Pt100-385/Pt100-392/Pt100-JIS/Pt200-385/P500-385/Pt1000-385/Cu10/Cu50/Cu100/Ni120
Display count 20000
Operating temperature -10°C~55°C
General Characteristics
Power 1.2V x 6 AA rechargeable battery
Product net weight 650g
Product size 195mm x 95mm x 58mm
Standard accessory Test lead, USB cable, power adapter, temperature probe, English manual
